4077|Report Hierarchy Builder - Maker
Menu location
FTP >> Parameter-MC >> FTP Report Parameters >> Report Hierarchy Builder
Applicable for roles
- RMUSER_M (RMUSER Maker)
Screen details
Maker

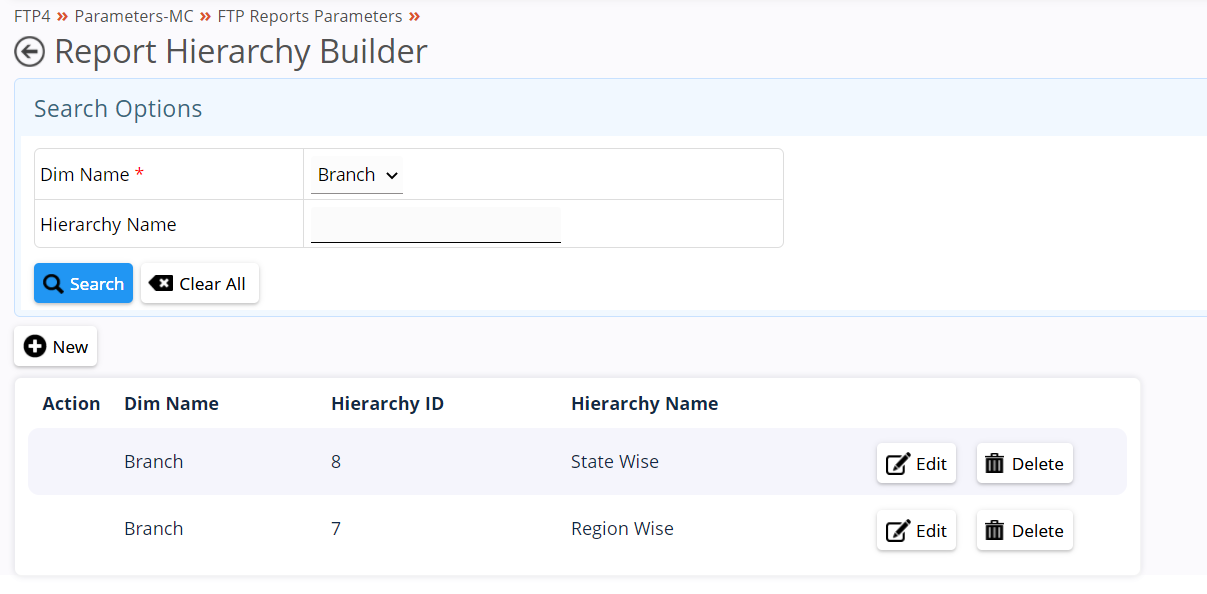

1. Search Screen:\

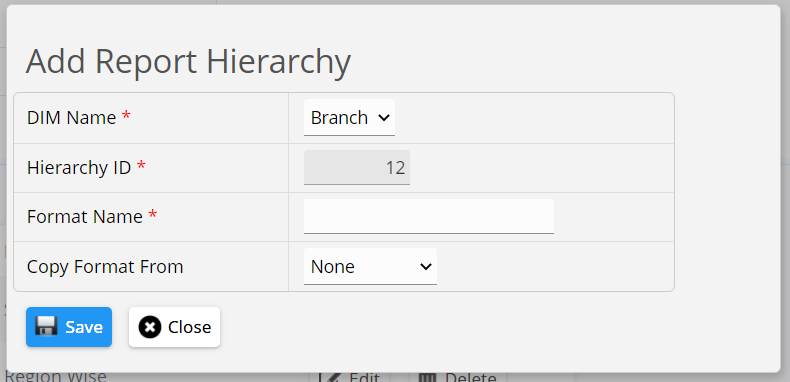

2. Add Report Hierarchy:\

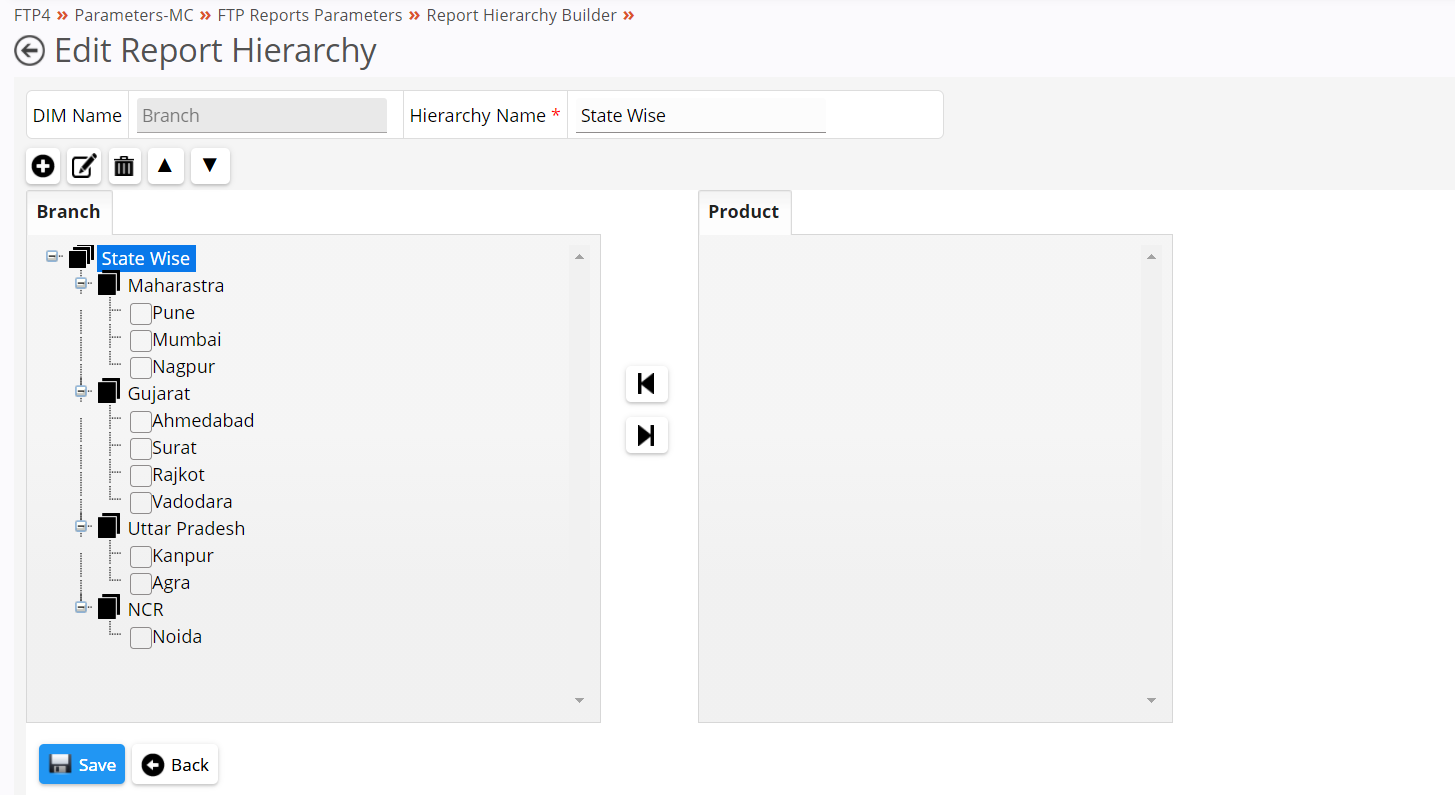

3. Add/Edit Report Hierarchy:\
Dependencies
| # | Search Field | Table Or view Used | Screen available to add/edit | Screen details |
|---|---|---|---|---|
| 1 | Dim Name | FTPDimDef | No | ------ |
Explanation
- Adding Report Hierarchy Format\ i Select Dim name from Dim Name dropdown for which new Hierarchy to be added and click new button\ ii Enter new Format name to be created (Mandatory)\ iii Copy the Format if required (Not Mandatory)
- Adding Report Format Item\ i Select the Root item or any child item from the tree and click new button for which new format item to be added\ ii Enter new Format Item Id and Format item description to be created
- Ordering Format items\ i Select the child item and click up or down arrow button for the movement.
- Save by clicking save button, saved data will be sent for checker approval.
Possible errors
Validation errors #|ErrorMessage|Cause of error| -----|----------------|------------------| 1|Field is Mandatory|If Mandatory fields are not mentioned before performing save and search actions| 2|Invalid input, special characters are not allowed|if we try to use special characters in id, description|
Functionality errors #|ErrorCode|ErrorMessage|Cause of error| -----|-------------|----------------|--------------------| 1|PRES10002|You cannot edit ALM product|If we try to edit product item instead of format item| 2|PRES10003|This operation can only be performed on non ALM product|if we try to delete the selected format item which it contains product items| 3|PRES10004|Since selected item is having ALM or dimension item you cannot add sub items|If we try to add new format item in which selected item is having product items| 4|PRES10005|You cannot edit root node!|when we try to edit the root item| 5|PRES10006|No ALM items selected|if we dont select product item from the tree| 6|PRES10007|You cannot add sub item to ALM product|when we try to add product item for sub format item| 7|PLF2112|It is top of the Hierarchy, You can't move up|when the selected item is on top most| 8|PLF2113|It is bottom of the Hierarchy, You can't move down|when the selected item is on bottom| 9|PRES09001|No record returned, please try another search|When no hierarchy item matches search parameters|
Code changes details
There is no change requested till date after development.
